Nomex paper, Nomex sheets and Nomex insulation are Class H electrical insulation materials used in motors, transformers, EV motors and switchgears. Sahara Labels is a trusted Nomex manufacturer and Nomex supplier in India supplying aramid insulation paper and Nomex insulation sheets PAN-India.

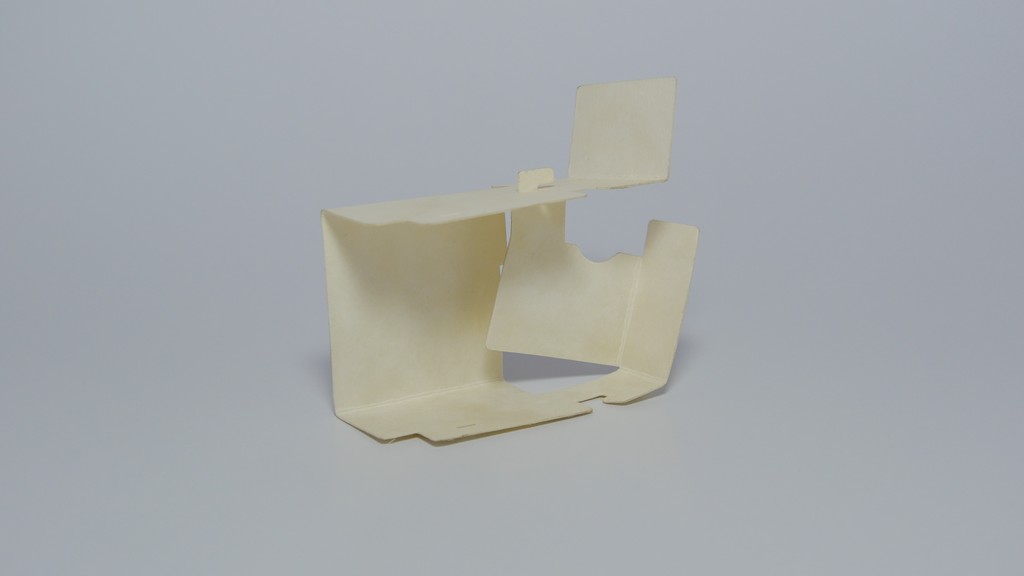

Nomex insulator is a Class H (180°C) electrical insulation paper manufactured from meta-aramid fibers. It is used in electric motors, transformers, generators, switchgears and control panels to provide high temperature resistance, dielectric strength and long-term insulation stability.
Nomex is technically known as Meta-Aramid paper and is commonly referred to in the electrical industry as “Armond Paper” or Class H insulation paper. Sahara Labels manufactures and supplies aramid (Nomex) insulation paper, sheets and precision die-cut components for motors, transformers and electrical panels across Bangalore and Karnataka.
Sahara Labels supplies Nomex insulation paper and Nomex insulation sheets across all major Indian cities including industrial insulation manufacturers in India networks in Delhi, Mumbai, Pune, Chennai, Hyderabad, Coimbatore, Ahmedabad, Surat, Rajkot, Jaipur, Gurugram, Noida, Faridabad, Bhiwadi, Neemrana, Manesar, Hosur, Sriperumbudur, Cochin, Trivandrum, Vizag, Vijayawada and all industrial hubs in India.
Our Nomex insulators offer superior thermal endurance (180°C), excellent dielectric strength, flame retardancy and long service life.
Technical data based on DuPont Nomex® 410 reference standards.
| Property | Technical Specification |
|---|---|
| Material Type | Meta-Aramid (Nomex® / Armond) Insulation Paper |
| Thermal Class | Class H – 180°C Continuous Operating |
| Available Thickness | 0.05 mm – 0.76 mm (2 mil – 30 mil) |
| Dielectric Strength | 18 kV/mm – 34 kV/mm (AC Rapid Rise) |
| Impulse Dielectric Strength | Up to 63 kV/mm (Full Wave Impulse) |
| Dielectric Constant | 1.6 – 3.7 @ 60 Hz |
| Dissipation Factor | 0.004 – 0.007 @ 60 Hz |
| Moisture Absorption | Low – Stable dielectric properties under humidity |
| Mechanical Strength | High tear resistance and flexibility |
| Chemical Resistance | Excellent resistance to oils, solvents and varnishes |
| Flame Retardancy | Self-extinguishing (UL94 V-0) |
| Supply Forms | Sheets, Rolls, Die-cut & CNC Precision Components |
Sahara Labels is a leading Nomex insulation manufacturer in Bangalore supplying Nomex paper, Nomex insulation sheets, Class H Nomex insulators and aramid insulation components for EV motors, traction motors, switchgears and control panels across Karnataka and India.

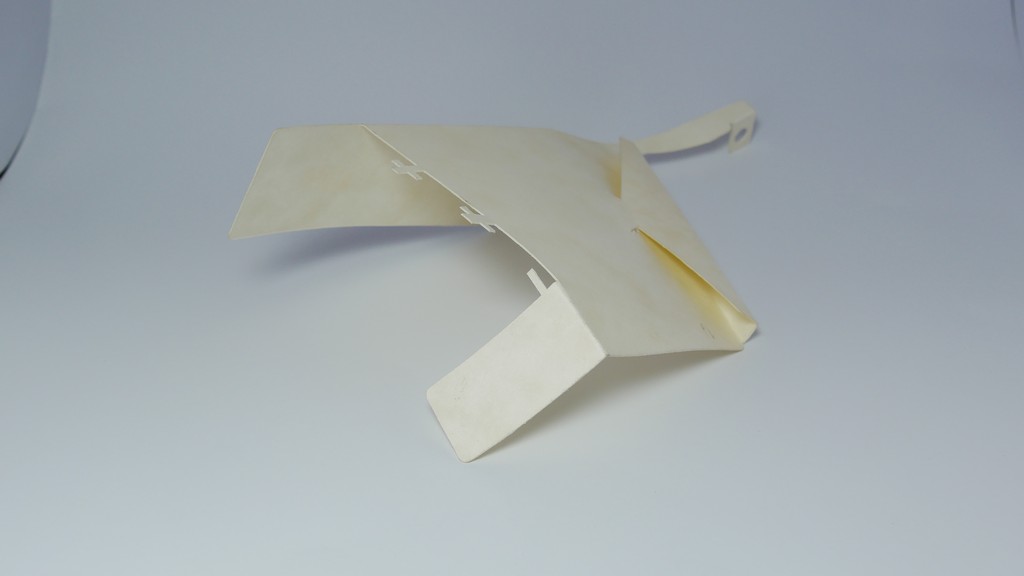

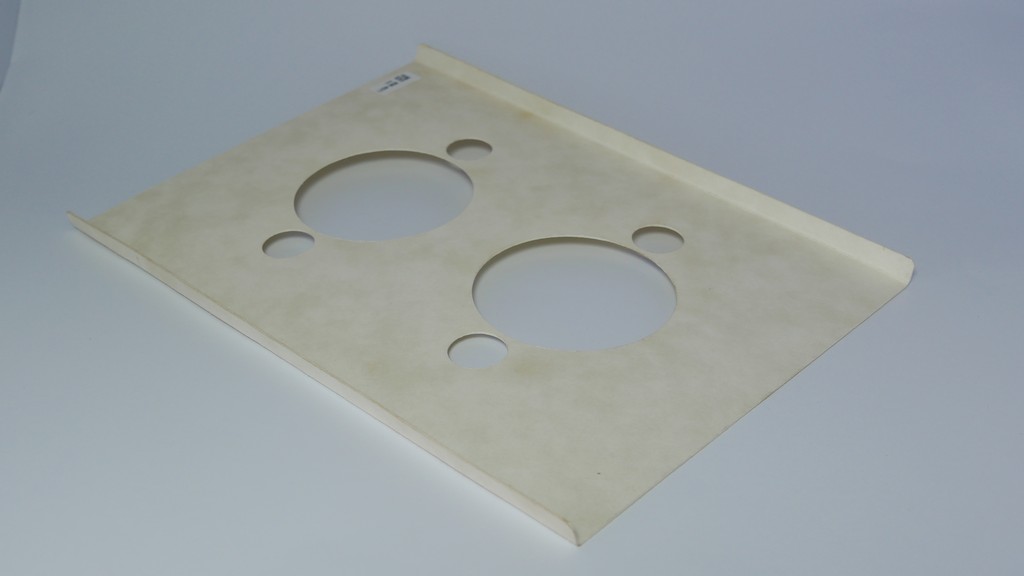

We supply Nomex insulation sheets in Bangalore in thickness from 0.05 mm to 0.76 mm in sheet, roll and die-cut forms. We offer factory-direct pricing and ready stock.

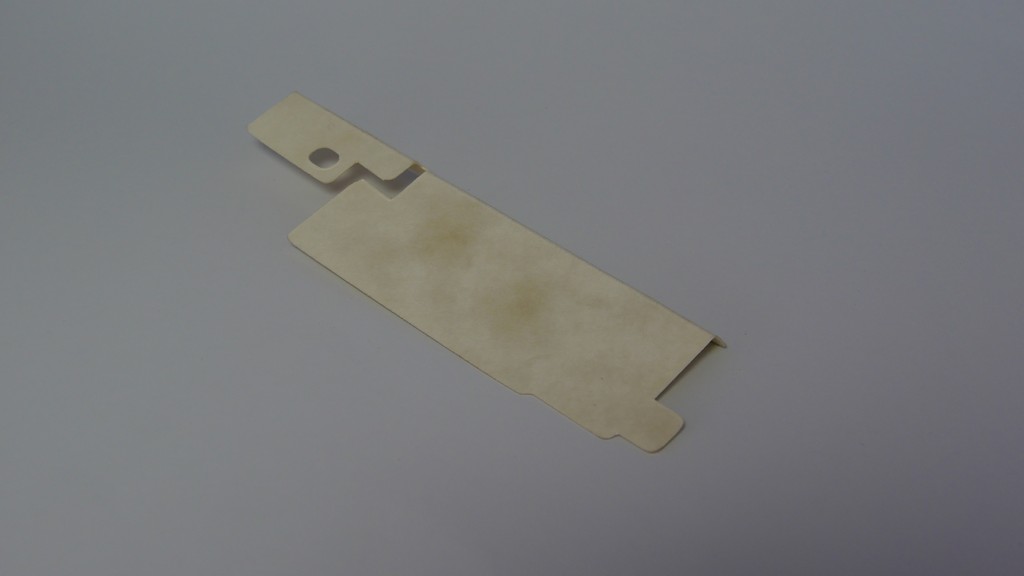

We are a trusted Nomex paper manufacturer in Bangalore supplying aramid paper insulation for motors, generators, transformers and EV inverters.

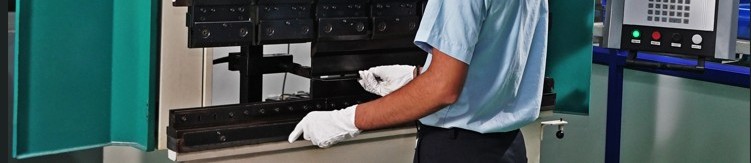

We manufacture CNC die cut Nomex insulation components, slot liners, phase separators, end laminates and custom electrical insulation parts.
Nomex insulation sheets are widely used in LV & HV switchgear panels for heat resistant electrical insulation and arc protection.
We supply EV motor Nomex insulation for stator slot liners, phase insulation and inverter thermal insulation components.
Nomex paper is used in traction motor insulation systems for railways, metros and heavy EV motors.
Nomex insulation sheets are used in electrical control panels, bus bar insulation and terminal separators.
Sahara Labels supplies Nomex insulation paper and Nomex insulation sheets across all major Indian cities including Delhi, Mumbai, Pune, Chennai, Hyderabad, Coimbatore, Ahmedabad, Surat, Rajkot, Jaipur, Gurugram, Noida, Faridabad, Bhiwadi, Neemrana, Manesar, Hosur, Sriperumbudur, Cochin, Trivandrum, Vizag, Vijayawada, Coimbatore and all industrial hubs in India.
If you are searching for where to buy Nomex insulation paper in Bangalore, Sahara Labels is the best Nomex insulation supplier in Bangalore offering factory-direct price, ready stock and fast dispatch.
